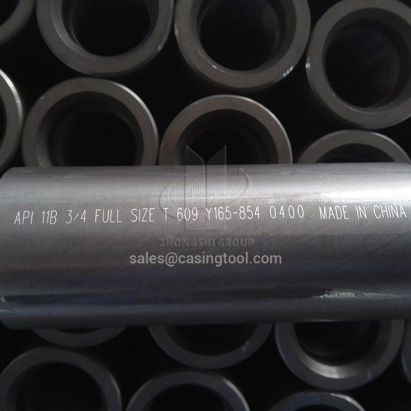

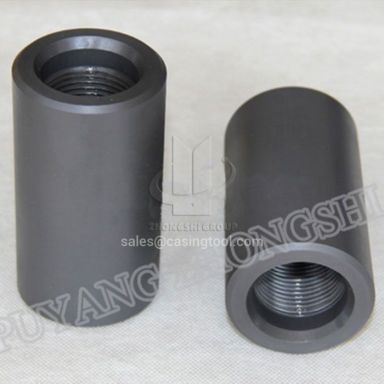

Class T Full Size and Slim hole Coupling
Our company produces coupling including sucker rod coupling, sub-coupling and spray metal coupling, they are design according to API Spec 11 B standard.
Our company produces coupling including sucker rod coupling, sub-coupling and spray metal coupling, they are design according to API Spec 11 B standard. These API Class T couplings are made of 4135 alloy steel and offer excellent resistance to hydrogen embrittlement. They are furnished with all Weatherford sucker rods unless otherwise specified.
Product Description
● Introduction
The sucker rod couplings are used for connecting sucker rods, polished rods and sinker bars.
-The main types of sucker rod couplings are sucker rod couplings, polished rod couplings and sub-couplings.
- All of the three types have two classes: class T(through-hardened)and class SM (sprayed metal).
-Material: carbon steel, alloy steel.
-Specification:5/8”, 3/4”, 7/8”1”, 1 1/8”
● API Oilwell sucker rod coupling
1.Size: from 3/4" to 1" slim hole full size
2.Placement: female
3.Technics: hot rolling
4.Grade: T,SM Grade T Sucker Rod Coupling
These API Class T couplings are made of 4135 alloy steel and offer excellent resistance to hydrogen embrittlement. They are furnished with all Weatherford sucker rods unless otherwise specified.
● Grade SM Sucker Rod Coupling
These SM Sucker Rod Couplings are made of 4135 alloy steel and offer excellent resistance to hydrogen embrittlement. This provides a strong metallurgical bond between base metal and the spray metal coating
● Full Size Coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Thread D.(in) | Length of Wrench Square (mm) | Hardness (HRA) |
| 5/8" | 38.10 | 101.6 | 15/16" | 31.8 | 56-62 |
| 3/4" | 41.28 | 1-1/16" | |||
| 7/8" | 46.00 | 1-3/16" | |||
| 1" | 55.60 | 1-3/8" | 38.1 | ||
| 1-1/8" | 60.33 | 114.3 | 1-9/16" |
● Slim Hole Coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Thread D.(in) | Length of Wrench Square (mm) | Hardness (HRA) |
| 5/8" | 31.75 | 101.6 | 15/16" | 31.8 | 56-62 |
| 3/4" | 38.10 | 1-1/16" | |||
| 7/8" | 41.30 | 1-3/16" | |||
| 1" | 50.80 | 1-3/8" | 38.1 |
Production
● For common sucker rod
Raw Material Test → Cold Straighten → Cut → Forge → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Assembly → Protective Cap → Package → Aczoiling Treatment.
● For extra high tensile sucker rod
Raw Material Test → Cold Straighten → Cut → Forge → Quenched And Tempered → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Surface Quenched → Assembly → Protective Cap → Package → Aczoiling Treatment.
● Shot blasting
● Packing
