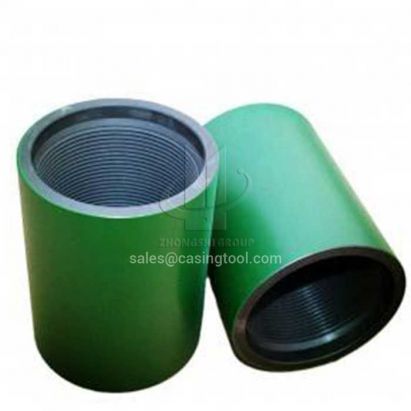

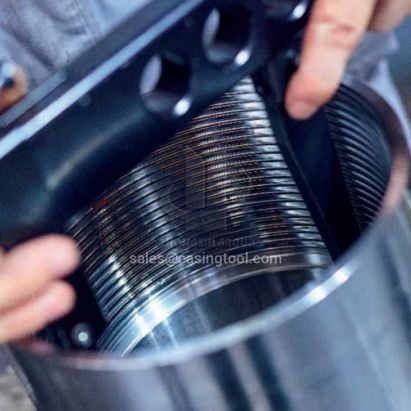

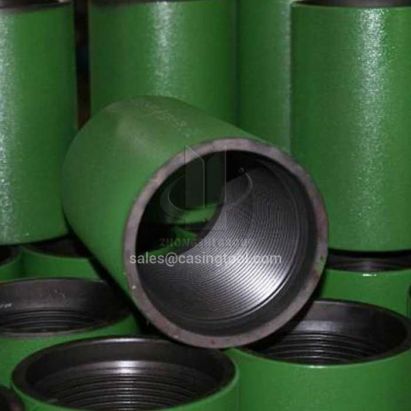

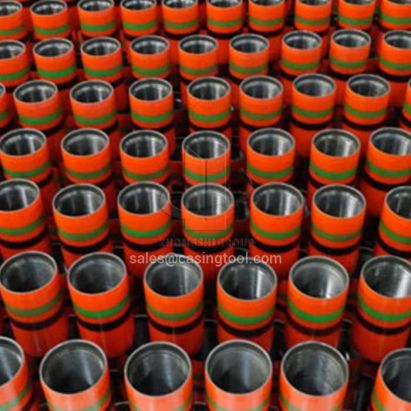

OCTG - Coupling for Casing and Tubing
Couplings are short lengths of pipe used to connect 2 joints of tubing or casing.
Couplings are short lengths of pipe used to connect 2 joints of tubing or casing.
They come with painted color codes on their external surface to indicate their grades.
Couplings are manufactured according to API 5CT and 5B specifications.
The following Couplings are available:
API Casing Coupling Options:
● Size: Outside Diameter 4-1/2” to 20”
● Grade: H40/J55/K55/N80/L80/C95/T95/P110/ Q125, etc.
● Wall thickness: 6.35-12.70mm
● Thread: STC/ LTC/ BTC
● Mill Test Certificates:
Issued in accordance with API Specification 5CT Eighth Edition.
Additional Third Party Inspection can also be performed on request.
API Tubing Coupling Options:
● Size: Outside Diameter 1.66” to 4-1/2”
● Grade: H40/J55/K55/N80/L80/C95/T95/P110/Q125, etc.
● Wall thickness: 3.56-16mm (2.3ppf-26.1ppf)
● Connections: API Connection: NU/EU/IJ
● Mill Test Certificates:
Issued in accordance with API Specification 5CT Eighth Edition.
Additional Third Party Inspection can also be performed on request.
