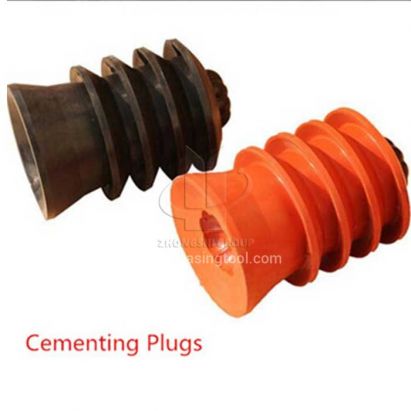

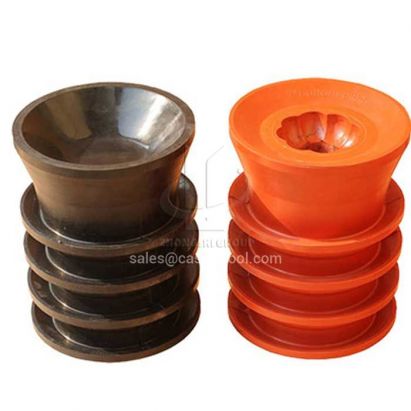

Non-rotating Cementing Plug

Cementing plugs are used during cementing operations for wiping the casing ID clean of drilling fluids and providing separation between mud, spacers, and cement.

They also prevent over displacement of the cement slurry and indicate when the cementing job is complete. All plugs are designed to fit in conventional cementing heads.

Cementing plugs designed and tested for superior performance.

The cementing plugs have a Phenolic core and are designed to be drilled out with PDC (Poly crystalline Diamond Compact) drill bits. The Non-Rotating Cementing Plugs are Phenolic cored with integral teeth designed to prevent rotation of the plugs during drill out operations.

Features

Phenolic core offers faster drill out than aluminum core plugs

Wiping and sealing fins are designed to allow for proper wiping and sealing

The standard wiping and sealing fins are molded from Natural Rubber (Intermittent Service Temperature: -65 to 180°F)

Hydrogenated Nitrile Butadiene Rubber (HNBR) (Intermittent Service Temperature: -40 to 300°F) is a high temperature option

Differential pressure of up to 5,000 psi (size dependent)

The bottom plug has a diaphragm rupture rating of 200-500 psi

The plugs are designed to fit in most cementing heads

The plugs offer up to 95% reduction in drill out times can be achieved when compared to plugs without non-rotating features

The plugs are designed to fit in conventional cementing heads and can be run with any conventional float equipment with a non-rotating plate installed at time of manufacture
